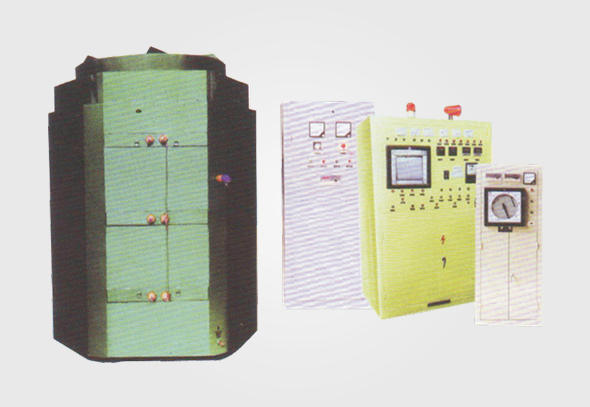

It is a periodic operation furnace. It can be used for heat treatment of iron and steel parts. It is especially suitable for recrystallization annealing of different iron wires. The maximum operating temperatures are 650, 950 and 1200.
Technical parameters:
| Name | Company | RJ-45-9 | RJ-55-9 | RJ-75-9 | RJ-90-9 | RJ-105-9 | |
| Rated power | Kw | 45 | 55 | 75 | 90 | 105 | |
| Rated voltage | V | 380 | 380 | 380 | 380 | 380 | |
| Rated temperature | ℃ | 950 | 950 | 950 | 950 | 950 | |
| Phase number | 3 | 3 | 3 | 3 | 3 | ||
| wiring method | Y | Y | YY | YY | YYY | ||
| Studio size | diameter | mm | φ800 | φ800 | φ800 | φ800 | φ1000 |
| deep | mm | 1350 | 1650 | 1650 | 1900 | 1900 | |
| Outline size | diameter | mm | φ1800 | φ1800 | φ1800 | φ1800 | φ2000 |
deep | mm | 2050 | 2350 | 2350 | 2600 | 2600 | |
| Maximum loading capacity | kg | 1000 | 1500 | 1500 | |||
